| 技术参数 Technical parameter | 标称值 Nominal value | 备注 Remarks |

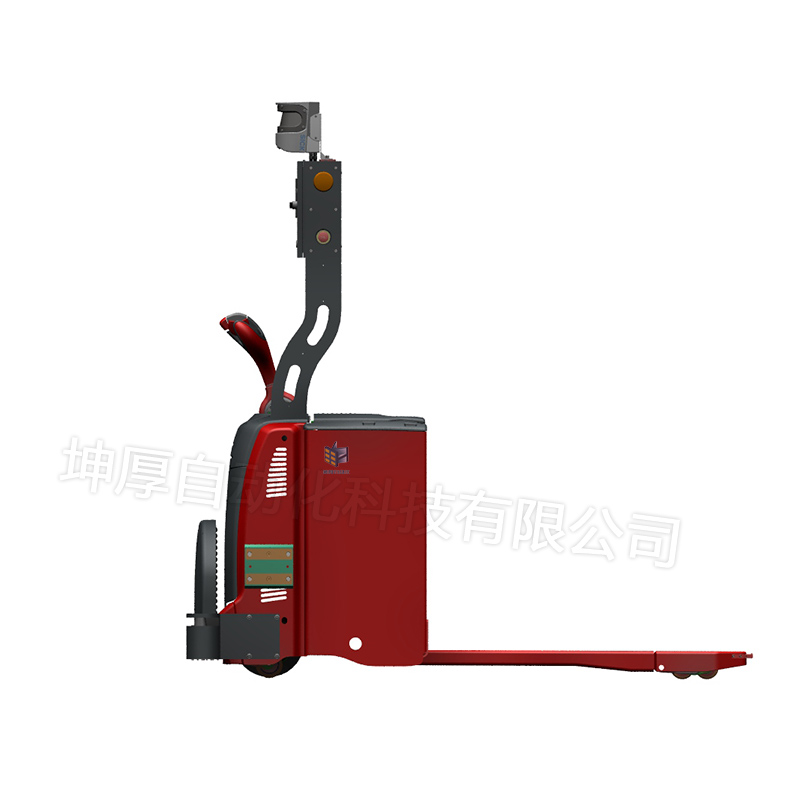

| 叉车车体 Forklift body type | 林德 Linde | |
| 外形尺寸Outline dimension | L1919xW990xH2000 | |
| 负载Load | 2000Kg | |
| 激光扫描头 Laser scanning head | SICK,HOUKUYO | 80M |
| 激光防撞头 Laser anticollision head | SICK,HOUKUYO | 3M可调，IPV6工业安全标准 3M adjustable IPV6 Industrial Safety Standard |
| 导航方式 Navigation mode | SLAM激光导航 SLAM laser navigation | 可选SLAM+末端反射板激光混合物导航SLAM End reflector laser mixture navigation is also available |
| 导航系统 guidance system | KH-Navikit® | |
| 地面越障高度 Ground obstacle crossing height | 125mm | |
| 最大行驶速度 Maximum speed | 90m/min | |
| 最大倒车速度 Maximum reversing speed | 18m/min | |
| 最大转弯速度 Maximum turning speed | 24m/min | 满负载，最小转弯半径 Full load, minimum turning radius |
| 最小转弯半径 minimum turning radius | 1694mm | |
| 最小通道宽度 Minimum channel width | 3200mm | 两侧货架，单通道 Side shelf, single passage |
| 续航时间 battery life | 6～8 h | |
| 电池种类 Battery type | 铅酸电池 lead-acid battery | 可改为锂电池在线充电 online charging Lithium battery is also available |
| 工作区最大面积 Maximum area of work area | 160000㎡ | |
| 导航精度 navigation accuracy | ±10mm | |
